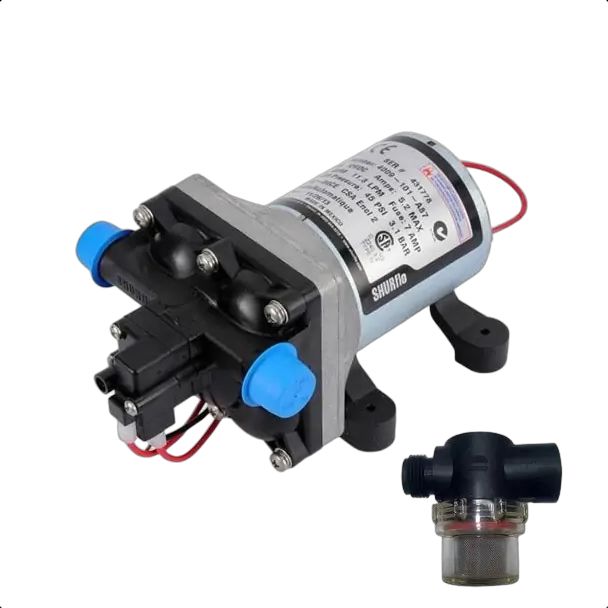

Shurflo 4009 12V Water Pump – Ideal for Caravans & RVs

Shurflo 4009 12V Water Pump – Ideal for Caravans & RVs

If you’re setting up a water system in your caravan or motorhome, a dependable 12V pump is essential. The Shurflo 4009 series is engineered with a single-piece diaphragm and an internal bypass system, delivering reliable performance and extended durability. Built to handle higher flow requirements, this upgraded model operates quietly and avoids rapid cycling, which can otherwise shorten a pump’s lifespan. It’s designed for long-term use and can safely run dry without damaging the motor.

Shurflo has become a leading name in cost-effective 12V water pumps, widely used in caravans, campers, boats, and motorhomes. This unit provides consistent water flow for everyday uses like sinks, showers, and even washing machines. Thanks to its compact, low-profile design, it can be installed in various positions within cabinets or storage compartments.

The pump features a ½-inch BSP male thread, making it compatible with standard ½-inch female fittings (commonly used with 13mm tubing). For best performance, it should be installed close to the water source, as it is designed to push water efficiently rather than pull it over long distances. Installation is straightforward, making it accessible even for first-time users.

Important Installation Notes

• The inlet fitting is tapered, so matching tapered connectors (like Shurflo swivel fittings) must be used
• A Shurflo filter must be installed before the pump(on the tank side)
• Do not use thread tape, as this will void the warranty
• Refer to the provided diagrams for correct BSP/NPT fitting guidance

Key Features

• Four-chamber diaphragm design for smooth and quiet operation
• Adjustable pressure shut-off for customised performance
• Self-priming up to 1.8m vertically
• O-ring check valve for durability and steady output
• Internal bypass system eliminates the need for an accumulator tank
• Dry run protection for added reliability
• Certified to CE and C-Tick standards
• Supplied with a Shurflo twist-on filter

Important Usage Notes:

• Must be used with a filter installed before the pump
• Thread seal tape must not be used
• Not covered for commercial use
• Not suitable for permanent outdoor exposure
• Not protected against dust ingress
• Adjusting the pressure switch will void warranty
• For frequent outdoor use, consider the Aqua King 005656-A model

Specifications

Pump Details:

• Type: 4-chamber diaphragm
• Ports: ½” - 14 NPSM male
• Max inlet pressure: 30 PSI (2.1 bar)
• Shut-off pressure: 45 PSI
• Compatible with 12mm BSP fittings

Electrical:

• Motor: 12V DC permanent magnet (intermittent duty)
• Protection: Thermal overload with auto reset
• Recommended fuse: 7A

Construction:

• Housing: Polypropylene
• Components: Stainless steel and zinc-plated hardware
• Weight: 2.3kg
• Size: 205mm (L) x 125mm (W) x 111mm (H)

Filter Maintenance

The included twist-on filter helps keep debris out of the pump. It should be installed between the water tank and pump inlet. To maintain optimal performance, clean the filter regularly—ideally at the beginning of each season. Simply unscrew the clear housing, rinse the screen, and gently brush away any buildup if needed. Keeping the filter clean ensures consistent water flow and protects the pump.

Troubleshooting Noise or Vibration

If the pump becomes noisy or vibrates excessively, start by checking the filter for blockages. Restricted flow can affect performance. If the filter is clean, confirm that the pump is installed close to the water tank. Since the Shurflo 4009 is designed to push water rather than pull it over long distances, correct positioning will improve operation and reduce noise.
