Product details

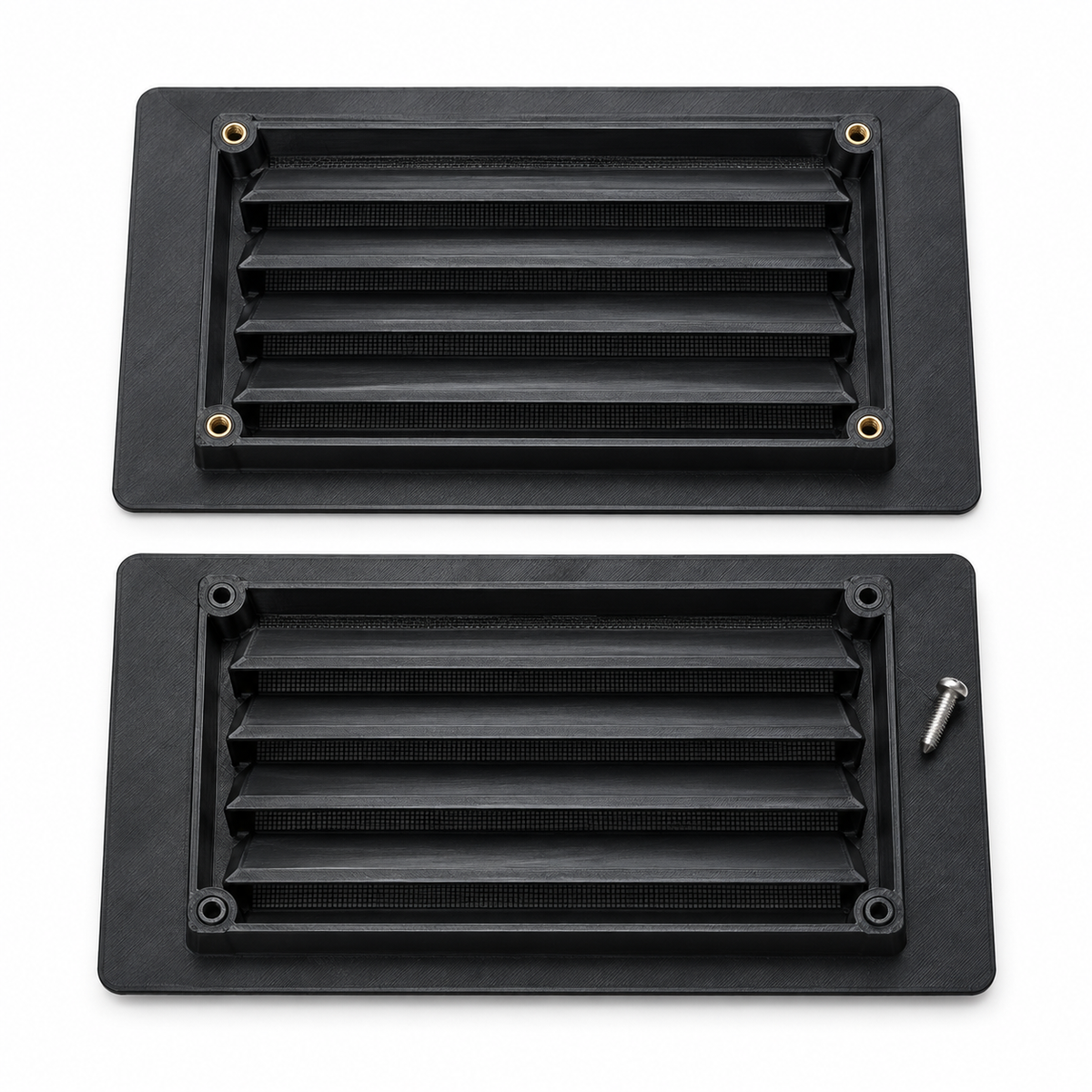

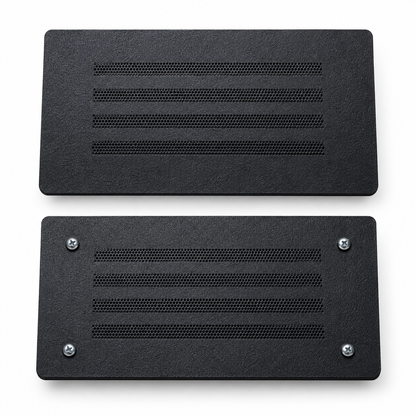

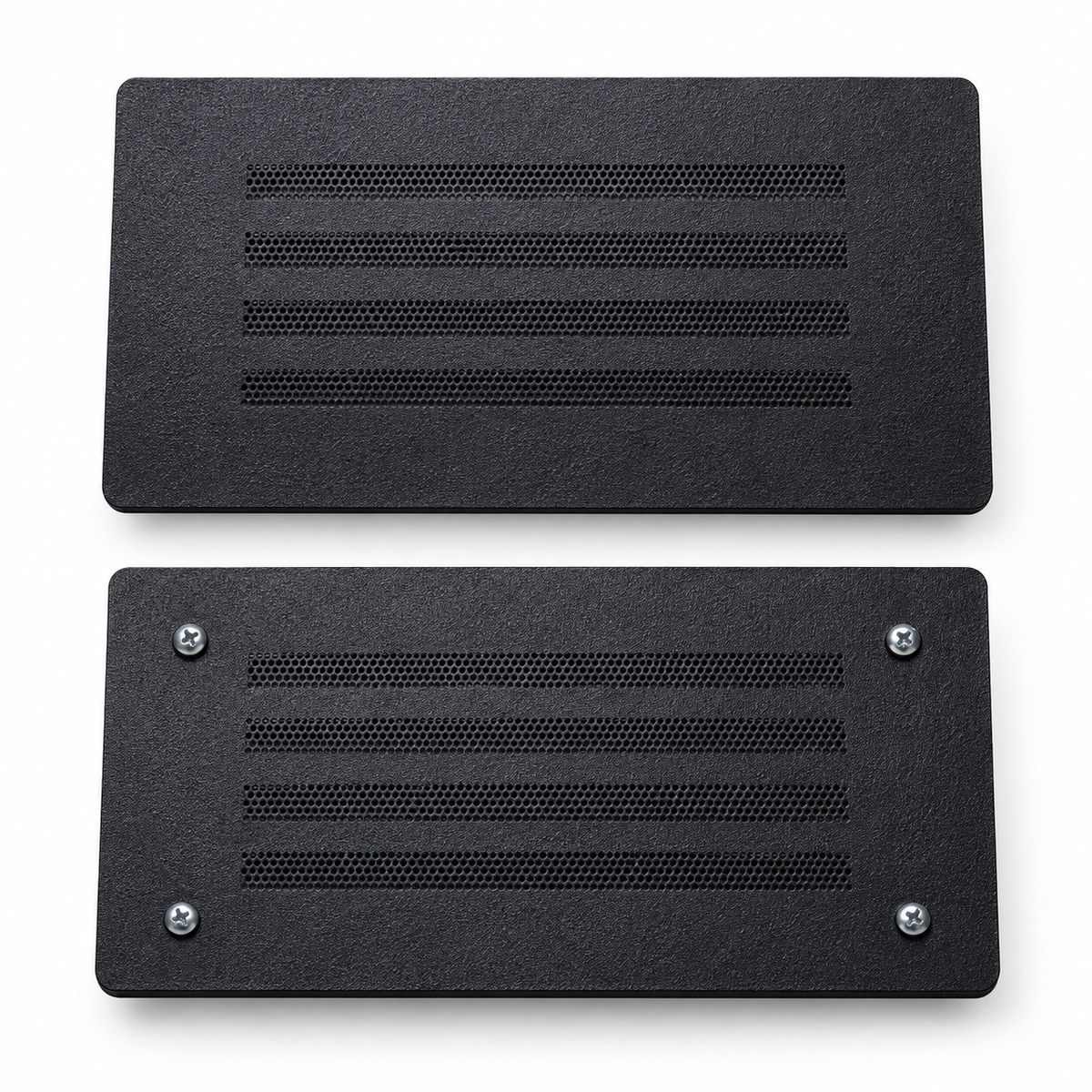

Caravan Side Wall Vent with Fly & Midge Mesh
Give your caravan a neat, practical ventilation finish with the Custom Etch Caravan Side Wall Vent. Commonly referred to as a caravan gas vent, this lightweight, two-part design secures from inside, leaving a clean exterior with no visible fixing screws.
Made from UV-rated material, it features fine mesh designed to keep flies and midges out while allowing ventilation.
Key features
- UV-rated material for exterior use.
- Lightweight construction for caravan applications.
- No external fixing screws — secured from inside the caravan.
- Fly and midge protection mesh across the ventilation openings.
- Two-part fitting with internal and external frames.
- Textured black finish with rounded corners.
Dimensions — pending confirmation for this mesh-faced version
| Specification | Measurement |
|---|---|
| Wall cutout | 220mm wide × 120mm high |
| Overall flange size | 260mm wide × 160mm high |
| Flange overlap | 20mm on each side |
| Flange thickness | 3.2mm |
| Nominal wall thickness in supplied guide | 30mm |
Fitment
Check your wall thickness, opening size and surrounding clearance before ordering. Contact Custom Etch Studio to confirm suitability for your caravan.
