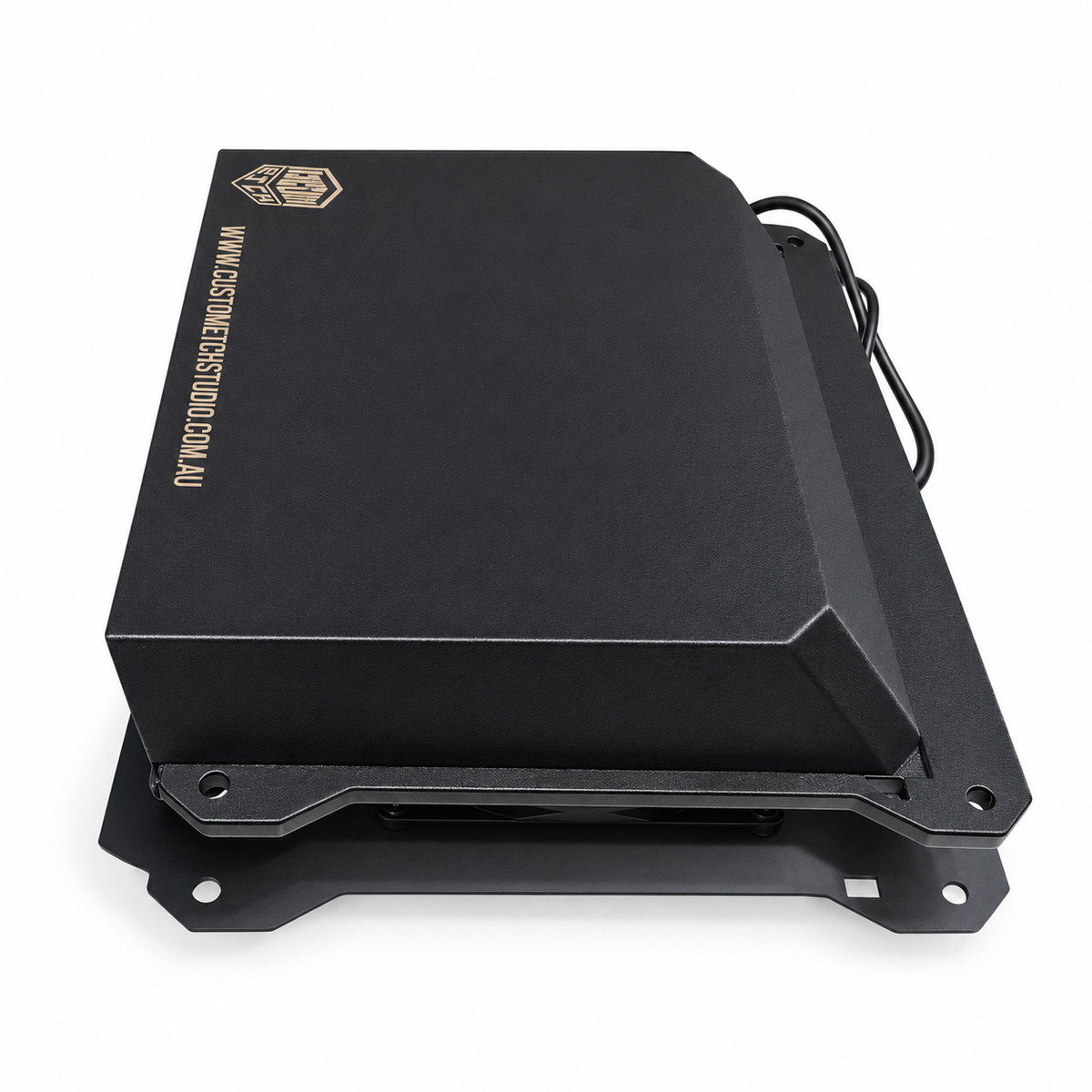

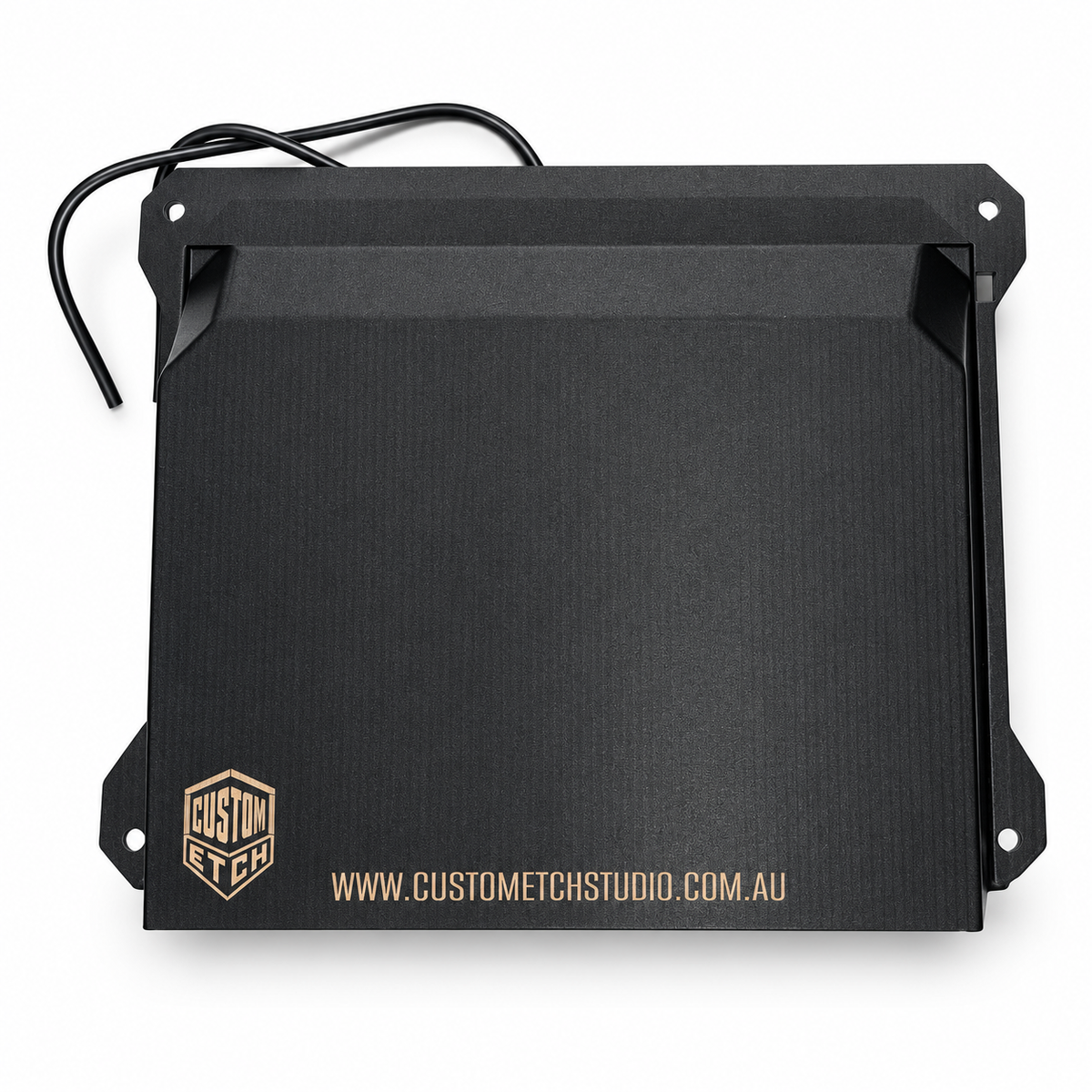

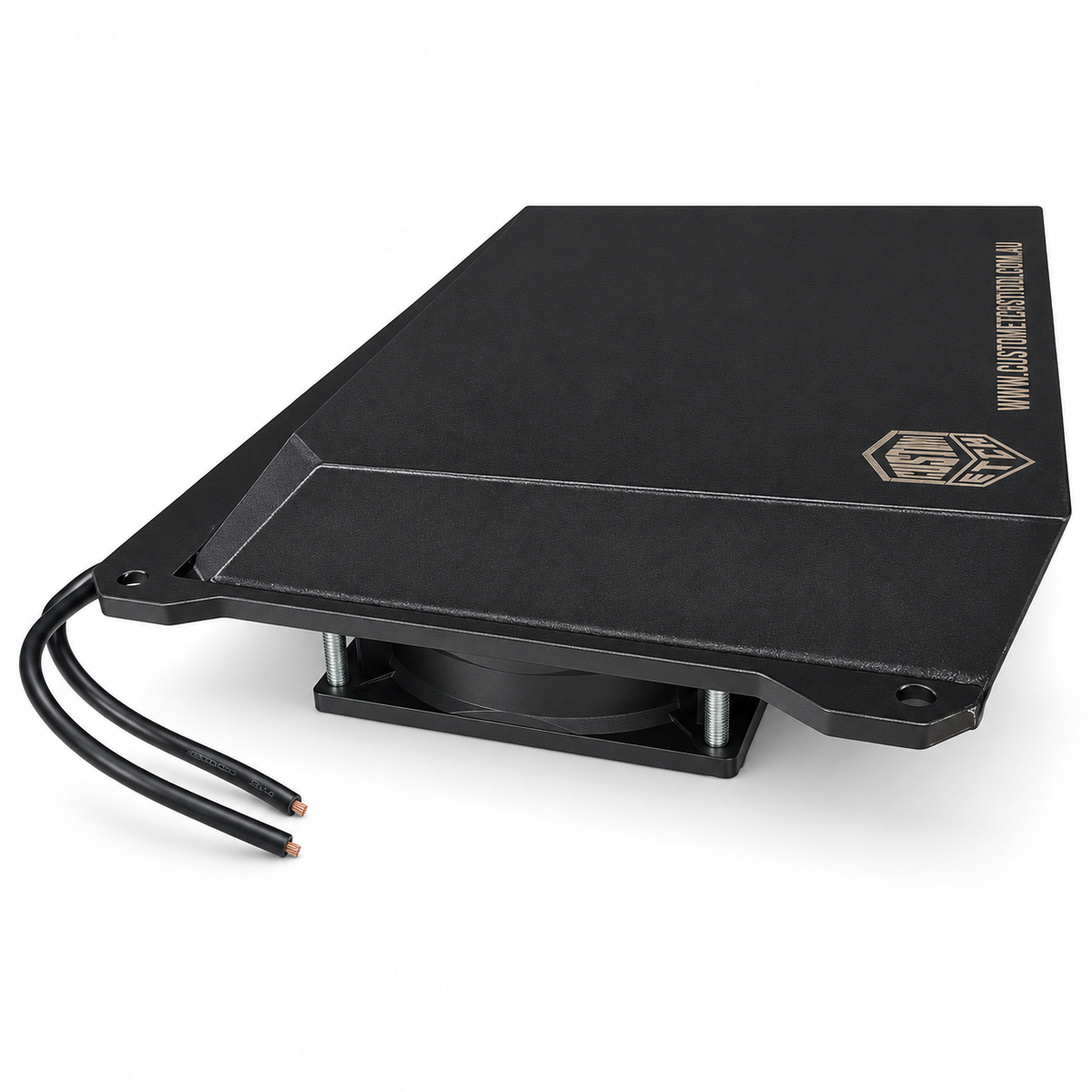

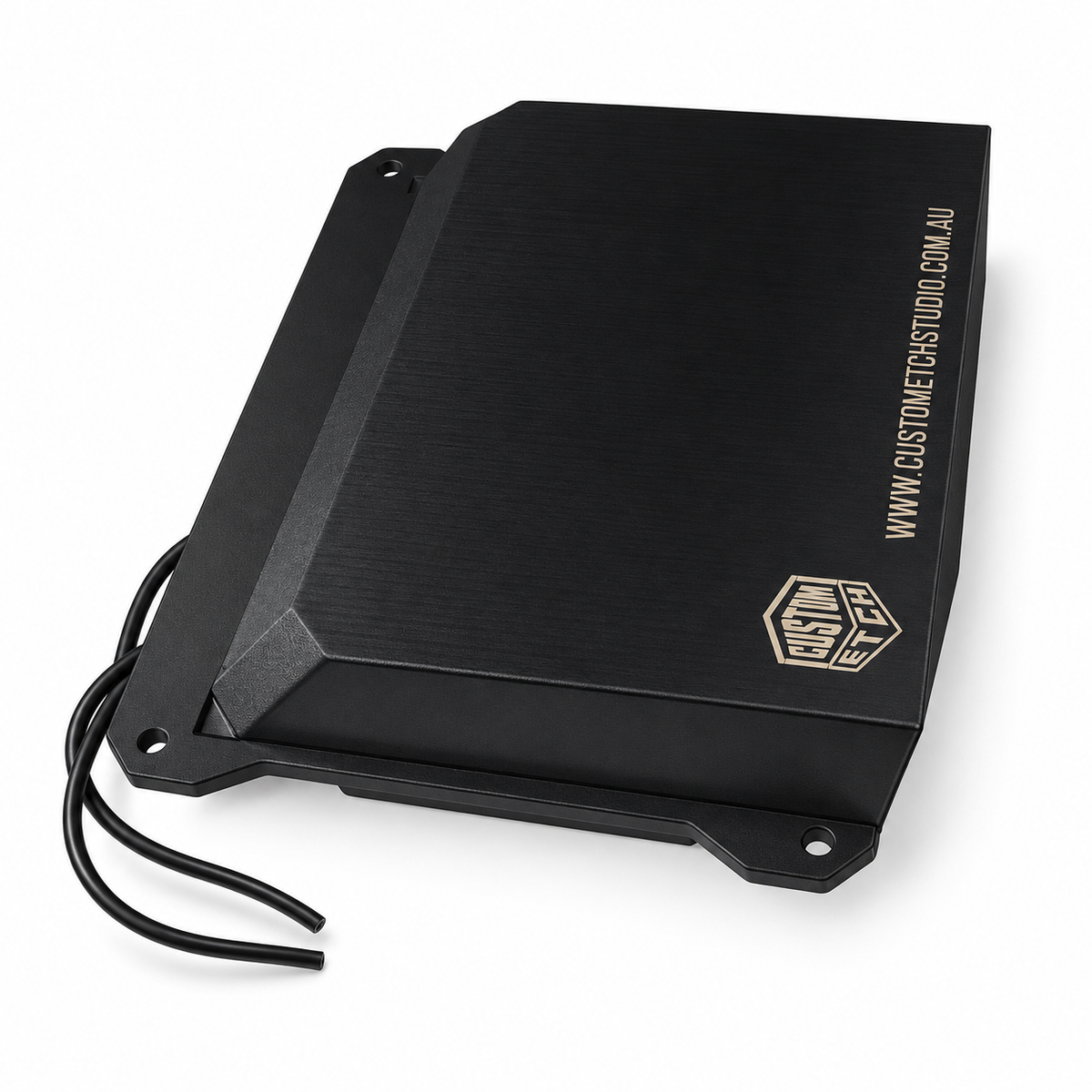

Custom Etch Dual Fan Ventilation Unit – Caravan & RV
Dual-fan ventilation. Compact design. Australian made.

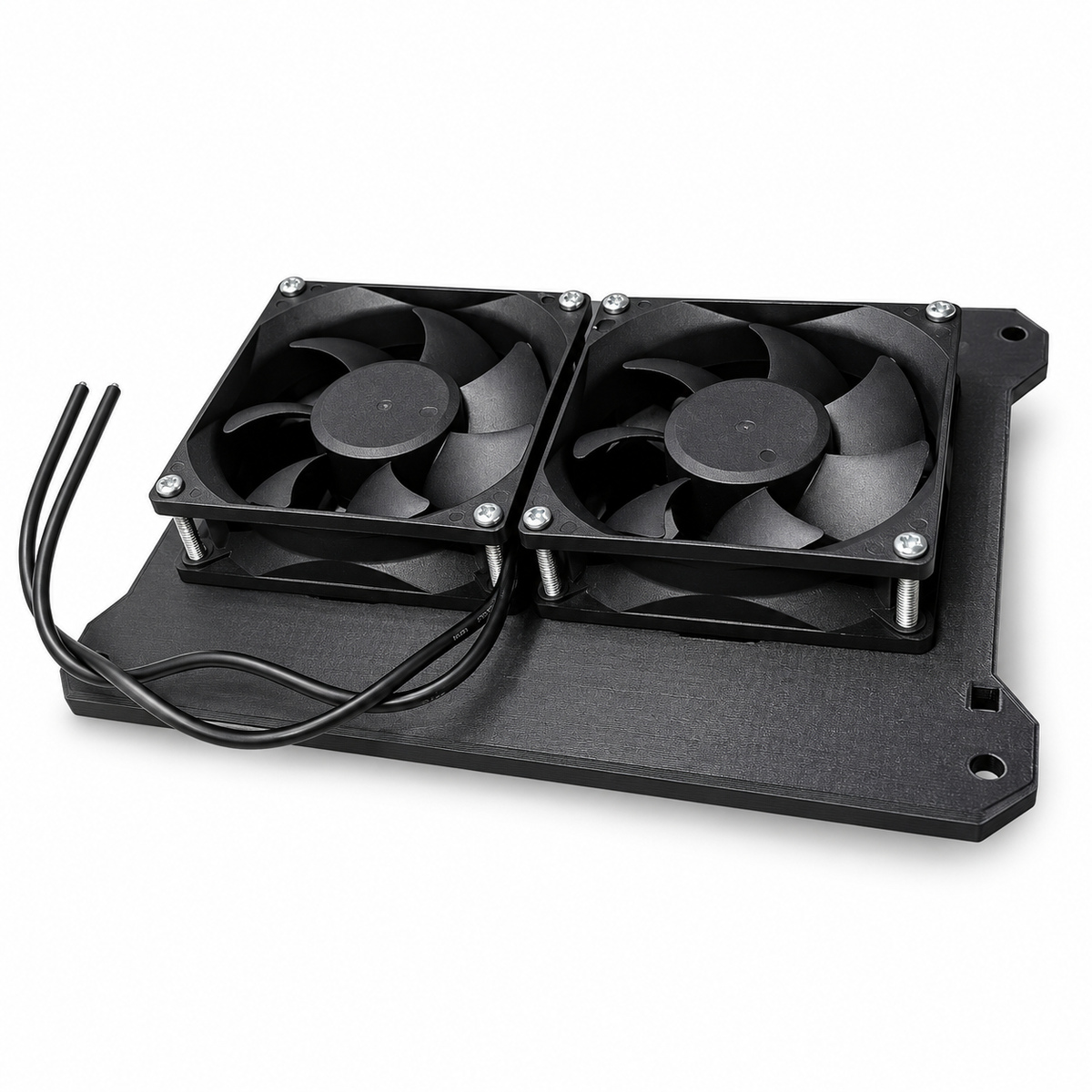

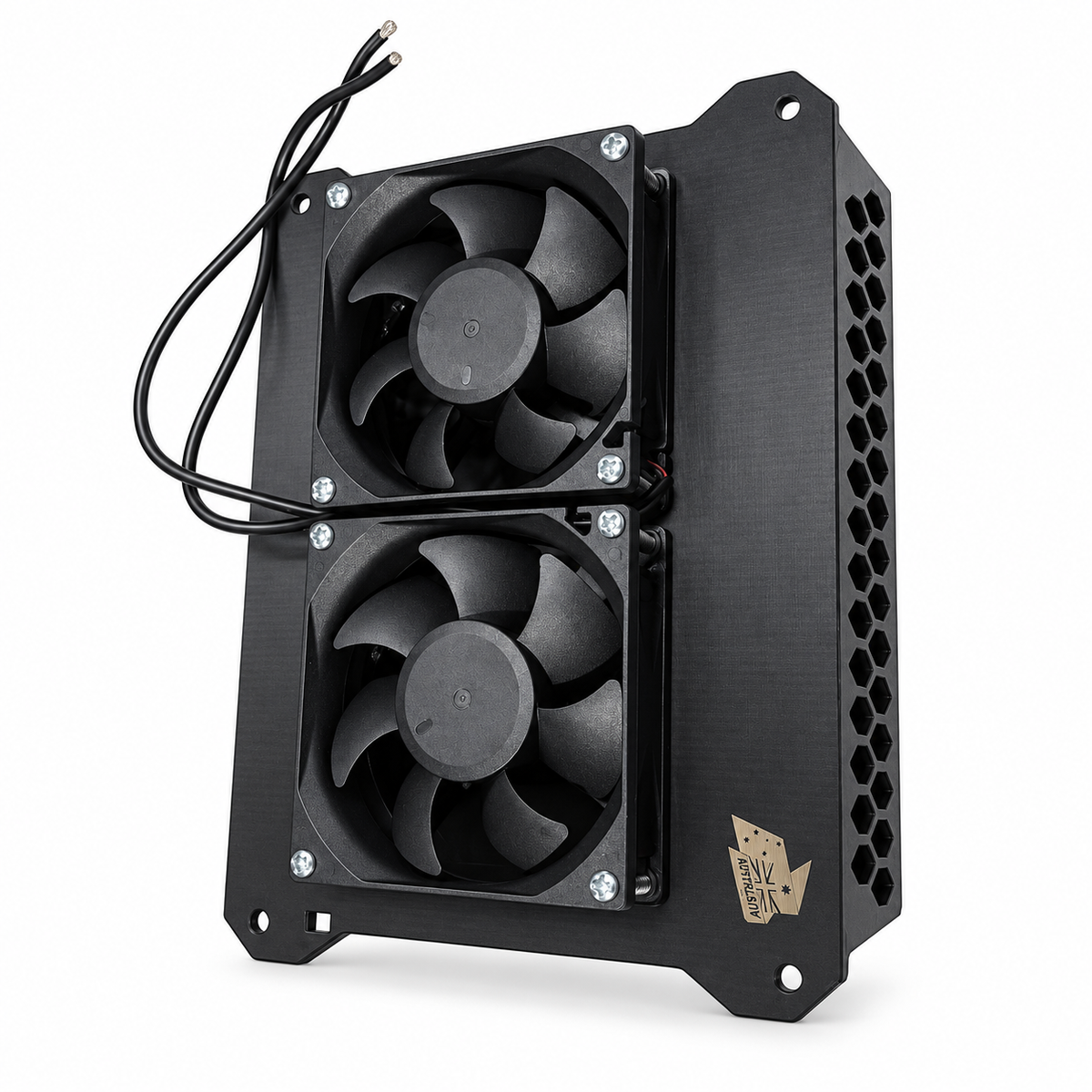

Improve airflow in your caravan, RV or custom ventilation project with the Custom Etch Dual Fan Ventilation Unit. Featuring two 80 mm fans beneath one compact external cover, this unit combines practical ventilation with a neat, professional finish.

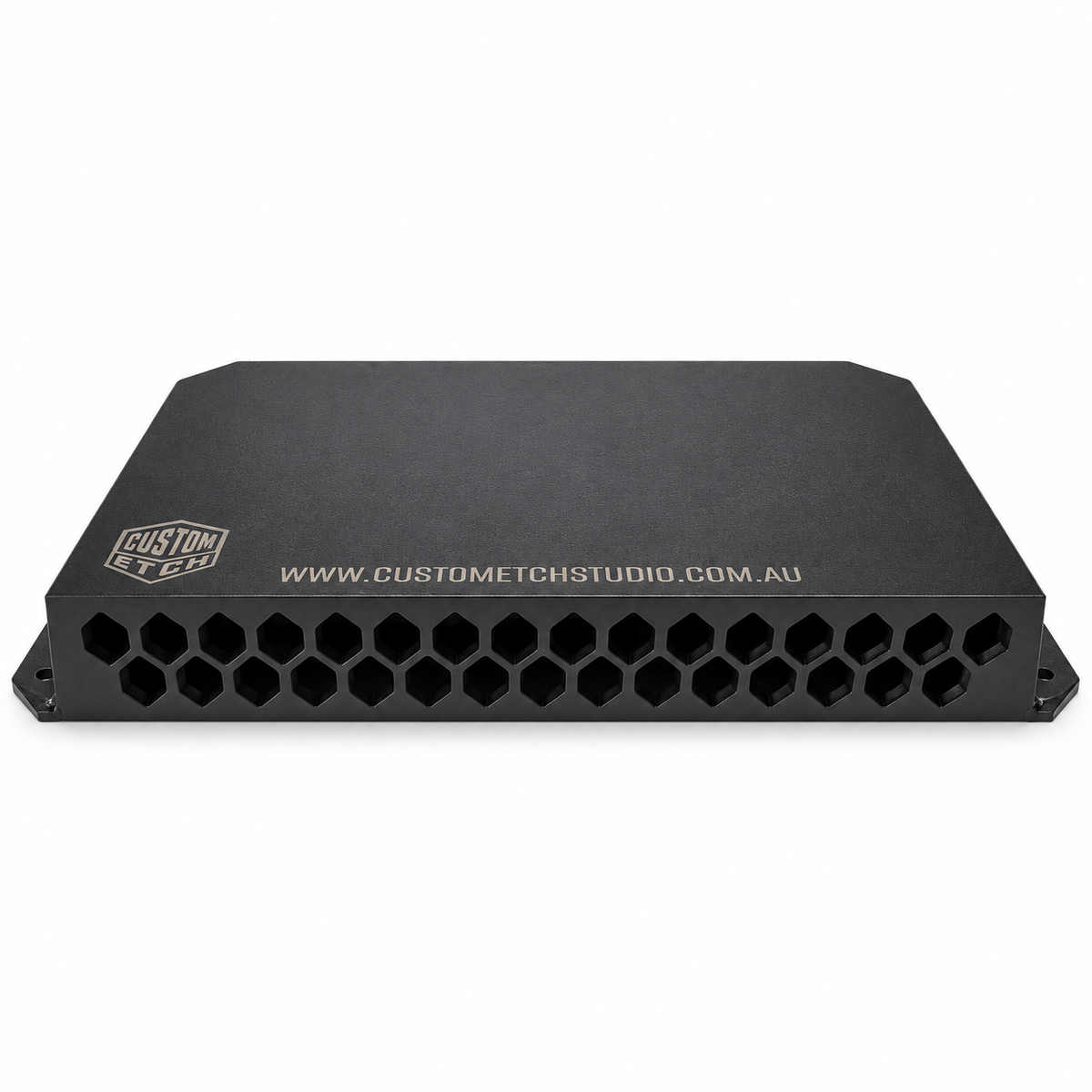

The angled housing, honeycomb ventilation grille and integrated mounting flanges create a clean, coordinated look. With a cover depth of just 32 mm, the external profile stays compact, while the fans sit behind the mounting surface.
Designed and made in Australia, with a UV-resistant housing tested and proven for the Australian sun.
Specifications
| Specification | Details |
|---|---|
| Fan configuration | Dual — 2 × 80 mm fans |
| Overall width | 205 mm |
| Overall height | 160 mm |
| Overall depth, including fans | 55 mm |
| Cover depth only | 32 mm |
| Required cut-out | 175 mm wide × 85 mm high — rectangular |
| Internal clearance required | 25–30 mm behind the mounting surface |
| Colour | Black |
| Design and manufacture | Australia |
Installation Requirements
A drill and suitable silicone sealant are required for installation. Appropriate cutting tools will also be needed when creating a new opening.
Before cutting or drilling, check the unit against your mounting location and ensure there is 25–30 mm of internal clearance for the fans. The dual-fan unit requires one rectangular opening measuring 175 mm wide × 85 mm high.
Apply suitable silicone sealant around the mounting flange to create a proper seal against the mounting surface. Keep the ventilation openings clear of sealant.
Do not overtighten the fixing screws. Tighten gently and evenly to secure the unit. Excessive tightening may crack the housing or mounting flanges.
